LASER Fiber Metal Marking Machine
High-speed 30W/50W fiber laser marker equipped with Sino-Galvo scanner head, MOPA/Q-switch source, EzCAD software, and rotary axis for stainless steel, brass, titanium, and polymers.
- check_circle LASER Source: 20-100W power, 1064nm wavelength, 20-80kHz modulation.
- check_circle High-Speed Galvo: Up to 7000mm/s, 0.001mm resolution, ±0.003mm precision.
- check_circle Marking Range: 110x110mm to 300x300mm, 0.01mm min line width, 0.2mm min character height.
- check_circle Optical Isolation: Enhances safety and performance stability.
- check_circle Air Cooling System: 0.5KW, 220V/50-60Hz (110V optional).
- check_circle Adjustable Table: 285mm stroke for flexible positioning.
- check_circle Environmental Tolerance: Operates in 0-35°C, up to 90% humidity.
- check_circle Compact Design: Lightweight and portable for easy integration.
- check_circle Low Maintenance: Minimal upkeep with durable components.
Industrial Applications
Target Production & Material Use CasesSerial numbers, barcodes on automotive/aerospace parts.
Intricate designs on metals and alloys.
Permanent, compliant markings on tools/implants.
Branding on electronics, tools, promotional items.
High-speed QR codes, batch numbers on materials.
Durable markings for identification and traceability.
Key Operational Advantages
Engineering ROI & ReliabilityCrisp, detailed marks for professional results.
Works on metals, plastics, ceramics across various sizes.
Fast marking speeds boost productivity.
Low power use and minimal maintenance costs.
Reliable in diverse environmental conditions.
Optical isolation ensures user and equipment safety.
Easy setup and adjustable table for operator convenience.
Sample Designs & Finished Workpieces
Precision finished specimens produced by our LASER Fiber Metal Marking Machine. Inspect surface edge quality and cut depth.
LASER Fiber Metal Marking Machine — Industrial Summary
High-Speed Direct Part Marking & Color Engraving
The ZR-FLM series fiber laser marking machine represents the benchmark for industrial traceability, UID serial marking, and deep metal relief engraving. Integrated with a solid-state maintenance-free Raycus / MAX fiber laser generator rated for over 100,000 continuous operating hours, this workstation produces sharp high-contrast marks on stainless steel, hardened carbon steel, anodized aluminum, brass, copper, and engineering plastics.
Key Engineering Advantages:
- High-speed Sino-Galvo digital scanning mirrors reaching linear vector velocities of up to 9,000 mm/sec.
- Dual red focus-finder targeting beams enabling instant, tool-free millimeter focal calibration.
- BJJCZ EzCAD industrial DSP controller with vector graphics import (DXF, AI, PLT, BMP, SVG) and dynamic barcode/QR serialization.
- Included D80 chuck-type motorized rotary axis for cylindrical bar, pipe, and flask engraving.
- Low power consumption (<650W) and completely air-cooled with no external chiller required.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| PRODUCT OVERVIEW | |
| LASER Source | MAX (Optional Raycus , JPT, OEM, IPG) |
| Laser wavelength | 1064nm |
| Average output power | 20W / 30W / 50W / 70W / 100W |
| Light isolation | Included |
| Modulation frequency range | 20kHz ~ 80kHz |
| Galvo Parameters | |
| Maximum speed | 7000mm/s |
| Resolution | 0.001mm |
| Repositioning precision | ±0.003mm |
| Optical Output Characteristics | |
| Marking area | 110×110mm, 150×150mm, 200×200mm, 300×300mm |
| Minimum line width | 0.01mm |
| Minimum line width | 0.01mm |
| Minimum height of characters | 0.2mm |
| Cooling System | |
| Cooling way | Air cooling |
| System Properties | |
| Laser power supply | 0.5KW / AC220V / 50Hz–60Hz (optional 110V) |
| Manual working table stroke | Movement itinerary 285mm (desktop type) |
| Environmental requirements | 0–35°C, ≤90% humidity |
| Optional Device | Rotary Attachment |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 2 verified client reviews.
“Installed the heavy CNC routing system 8 months ago. Continuous 16-hour daily shifts without single axis drift. Spindle performance on solid hardwoods and acrylic sheets is exceptional.”
“High precision repeatability and robust chassis. Operating seamlessly across multiple shifts.”
Complementary Industrial CNC Systems
CNC Router 1325 Wood Working Machine
Experience precision and power with the CNC Router 1325 Woodworking Machine. Featuring a heavy-duty steel frame and a high-speed 6KW air-cooled spindle, it delivers flawless carving, cutting, and milling for furniture, MDF, acrylic, and more.
CO2 LASER Cutting & Engraving Machine
High-precision CO2 laser cutting and engraving machine (60W–180W) engineered for clean cutting and fine engraving on acrylic, wood, leather, and glass. Built with durable Leadshine motion, CW water cooling, and versatile bed options up to 1400×1000 mm for signage, crafts, and prototyping.

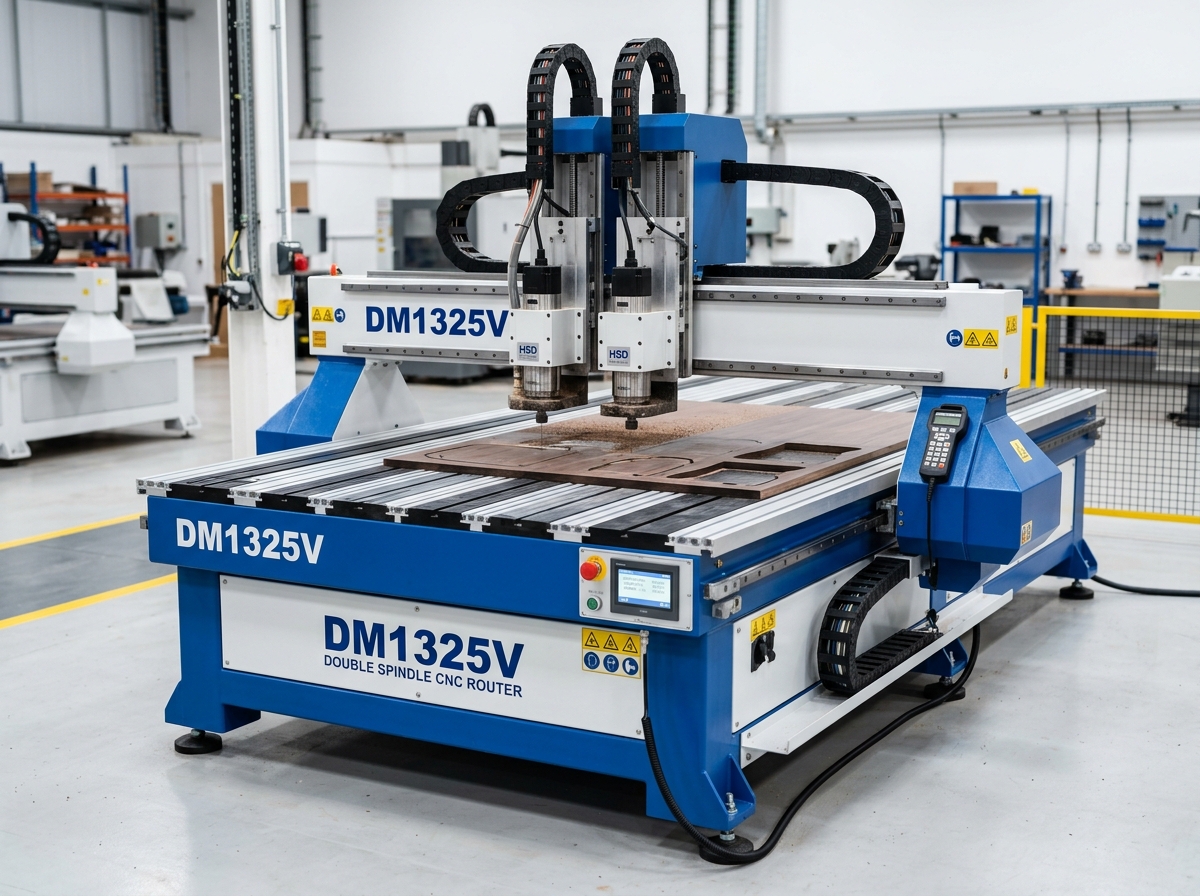

1325V Double Spindle CNC Router
