CNC Router 1325 Wood Working Machine
Experience precision and power with the CNC Router 1325 Woodworking Machine. Featuring a heavy-duty steel frame and a high-speed 6KW air-cooled spindle, it delivers flawless carving, cutting, and milling for furniture, MDF, acrylic, and more.
- check_circle Heavy-Duty Frame: Robust steel tube welding ensures exceptional stability and durability.
- check_circle High Precision: 0.05 mm positioning accuracy allows for highly detailed cutting and engraving.
- check_circle High-Speed Spindle: 6KW air-cooled spindle (1–18,000 RPM) guarantees efficient material processing.
- check_circle User-Friendly Control: Integrated Rich Auto or NK 105 control systems for simplified, intuitive operation.
- check_circle Flexible Drive Options: Choose between Leadshine Stepper, Easy Servo, or YAKO Tech Full Servo motors.
- check_circle Software Compatibility: Fully supports UcanCAM, ArtCAM, TYPE3, and Aspire design software.
- check_circle Low Maintenance: Built with a durable gear reducer transmission for long-lasting, reliable performance.
Industrial Applications
Target Production & Material Use CasesCrafting intricate wooden doors, cabinets, and tables.
Detailed 2D and 3D carving on various wood types.
Precision cutting of acrylic and MDF for signs and displays.
Creating beautiful architectural screens and partitions.
Key Operational Advantages
Engineering ROI & ReliabilityHigh-speed spindle and robust drive options accelerate production.
Maintains 0.05 mm precision for professional, flawless cuts.
Heavy-duty steel construction ensures years of reliable service.
Compatible with popular design software to streamline your workflow.
Sample Designs & Finished Workpieces
Precision finished specimens produced by our CNC Router 1325 Wood Working Machine. Inspect surface edge quality and cut depth.
CNC Router 1325 Wood Working Machine — Industrial Summary
High-Performance CNC Solution for Woodworking and Fabrication
The CNC Router 1325 Woodworking Machine is engineered to bring unmatched precision, speed, and durability to your production line. Whether you are cutting, carving, engraving, or milling, this versatile machine is the ideal choice for creating intricate wood crafts, furniture, and processing materials like acrylic, MDF, and PVC.
Built for Stability and Speed
At the core of the CNC Router 1325 is a heavy-duty, robust steel tube welded frame that ensures maximum stability during high-speed operations. This sturdy foundation works in harmony with a powerful 6KW air-cooled spindle, capable of operating between 1 to 18,000 RPM, delivering efficient and smooth processing every time.
Precision and Control You Can Trust
Achieve flawless results with an impressive 0.05 mm positioning accuracy, perfect for highly detailed engraving and complex cuts. Operating the machine is a breeze thanks to the intuitive Rich Auto or NK 105 control system. For motion control, you have the flexibility to choose between Leadshine Stepper, Easy Servo, or YAKO Tech Full Servo motors, ensuring the setup matches your exact production needs.
Seamless Software Integration
Designed to fit seamlessly into your existing workflow, this CNC router supports industry-standard design software, including UcanCAM, ArtCAM, TYPE3, and Aspire. The durable gear reducer transmission not only enhances performance but also significantly lowers maintenance requirements, giving you a long-lasting, reliable manufacturing partner.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| PRODUCT OVERVIEW | |
| Product Model | CNC Router 1325 (Wood Working Machine) |
| Machine Type | CNC Router |
| Working Table Size (mm) | 1300×2500 |
| Working Table Size (mm) (Optional Size) | 1500×3000 / 1500×4000 / 1800×3700 / 2000×4000 |
| Number of Axis | 3 Axis - X, Y ,Z |
| Spindles | Single Phase / Three Phase (Dual Head Optional) |
| Voltage | 220V / 380V |
| Weight (kg) | 900 |
| Warranty | 1 Year |
| Range of Spindle Speed (R.P.M) | 1 – 18000 rpm |
| Positioning Accuracy (mm) | 0.05 mm |
| Movement & Guide System | |
| Guide Rail X , Y & Z axis (mm) | 25mm |
| Travel Z axis | 200 / 300 |
| Ball Screw Z axis | 25 mm |
| Machine Specification | |
| Dimension (L×W×H) | 3200×2140×1850 mm |
| Application | MDF, WOOD, ACRYLIC, ALUMINUM |
| Spindle | 6KW Air cooled (Z Axis With Brake Motor) |
| Control System | Rich auto / NK 105 |
| Function | Cutting, Engraving Non-metal Materials |
| Working Area | 1300×2500×200 mm / 300 mm |
| VFD (Spindle Drive) | Best / Delta |
| Drive System Options | |
| Motor and Driver Option 1 / 2 | Leadshine (Stepper / Easy Servo ) |
| Motor and Driver Option 2 | YAKO Tech (Full Servo) |
| Transmission | Gear Reducer (Optional) |
| Software & Structure | |
| Software | UcanCAM / ArtCAM / TYPE3 / Aspire |
| Structure | Heavy Duty Steel Tube Welding |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 2 verified client reviews.
“The fiber laser cutting speed and edge squareness exceeded our expectations. ZR IMPEX engineers completed on-site commissioning within 48 hours and trained our machine operators thoroughly.”
“High precision repeatability and robust chassis. Operating seamlessly across multiple shifts.”
Complementary Industrial CNC Systems

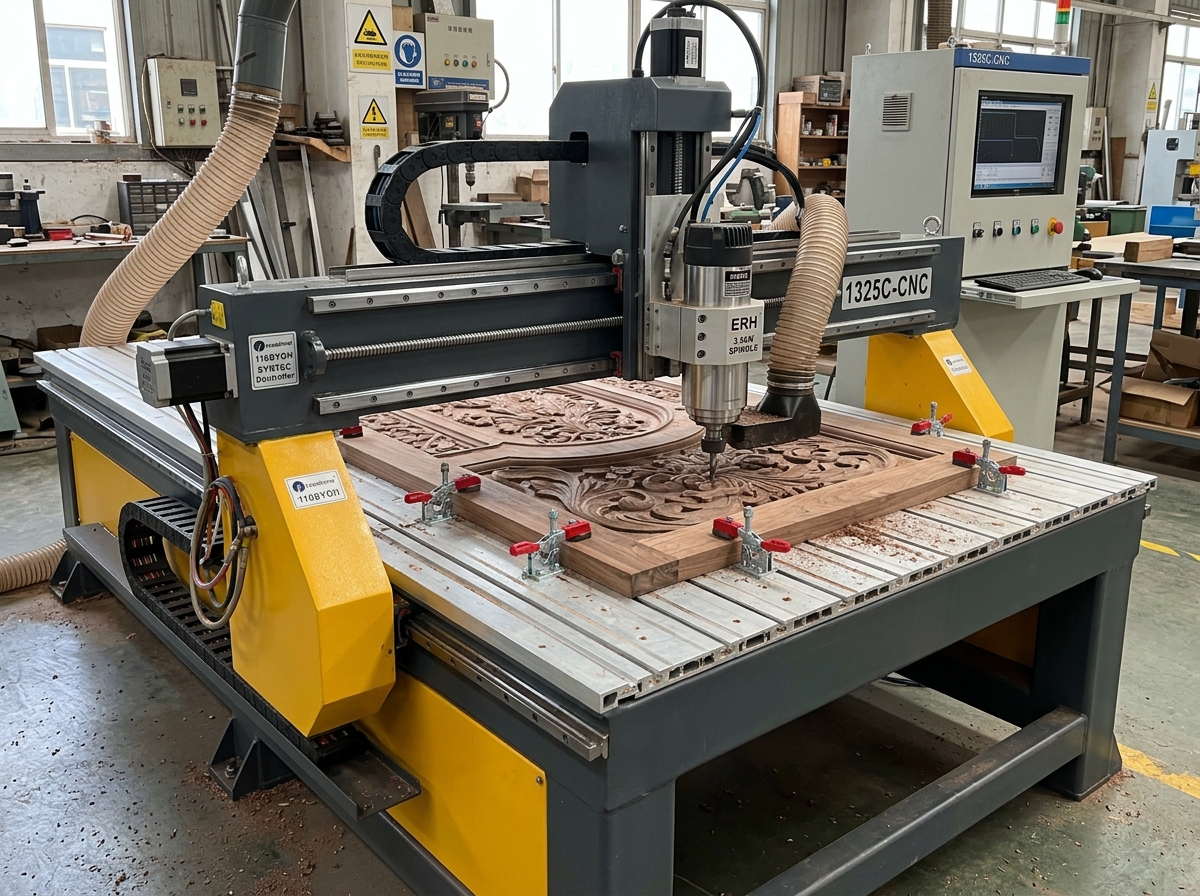

1325c CNC Wood Router, 3.5 Kw
Industrial 4x8 ft 3-axis CNC router with 3.5 kW high-speed 18,000 RPM air-cooled electrospindle, dual-motor Y-axis gear rack drive, welded tubular steel bed, and power-outage breakpoint recovery.

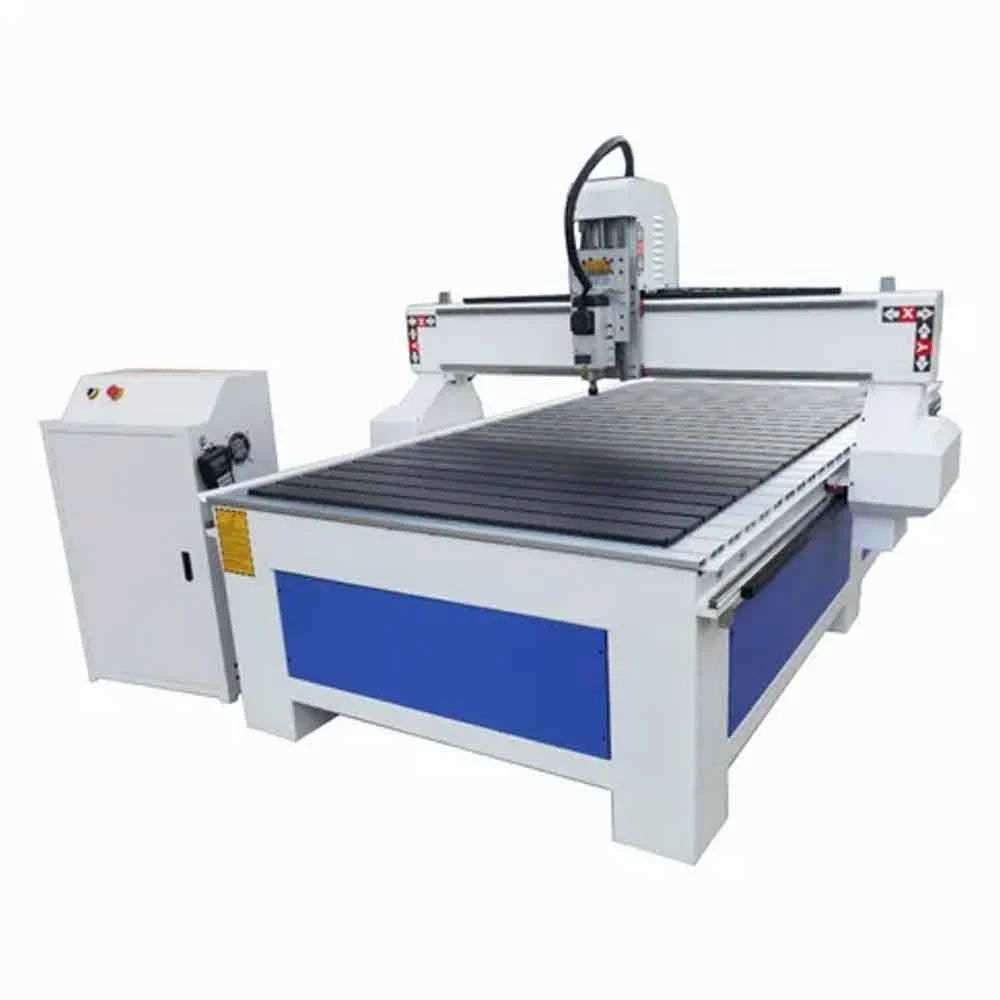

1325c CNC Wood Router 3.5 Kw
Standard industrial 1300x2500 mm (4x8 ft) CNC wood router with a 3.5 kW 18,000 RPM spindle. Engineered with a rigid welded steel frame, dual-motor Y-axis gear rack drive, and T-slot table for cabinet nesting, MDF crafts, acrylic cutting, and non-ferrous sheet routing.

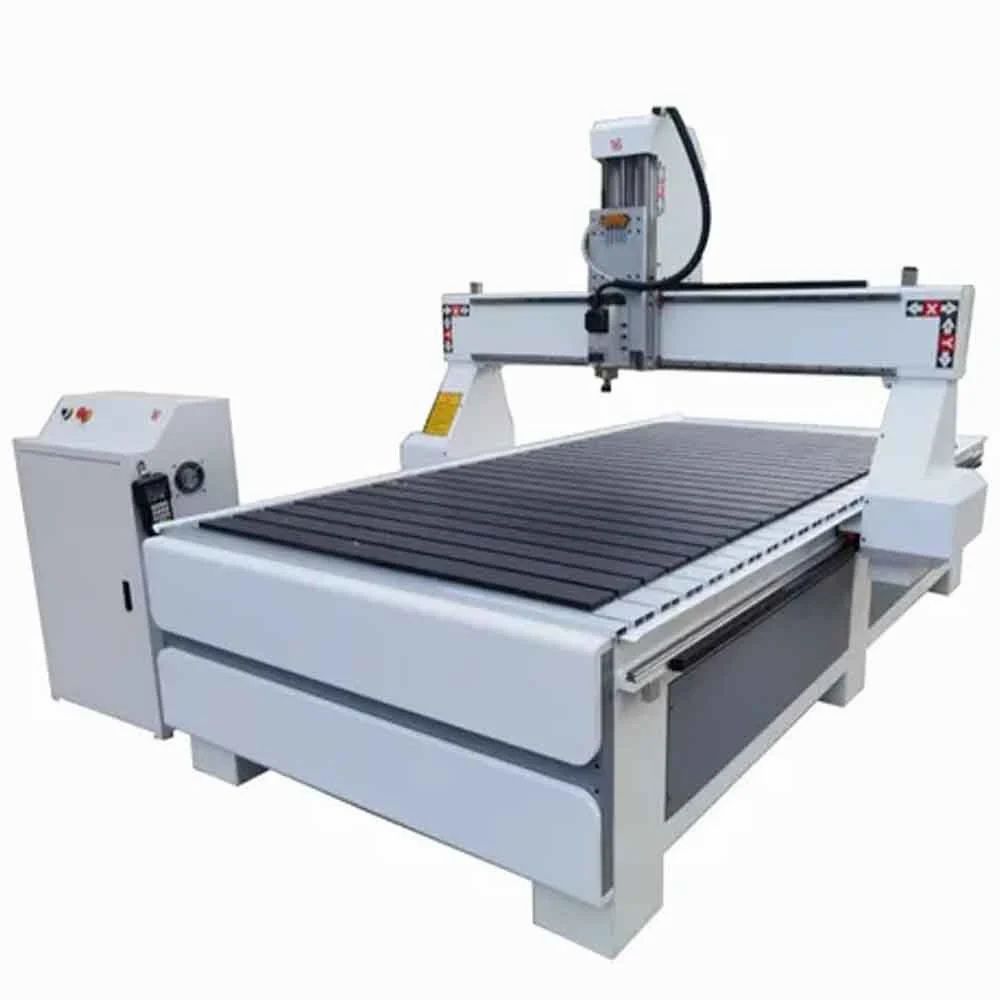

Dm 1325b CNC Wood Cutting Machine, 3.5 Kw
