1325V Double Spindle CNC Router
Industrial 4x8 ft dual-spindle 3-axis CNC router with high-torque 6.0 kW spindle capacity, heavy-duty T-slot clamping bed, and rapid 30,000 mm/min cutting speed. Built for synchronous dual-part production and wave board carving.
- check_circle Dual Spindle Production Power: 6 kW total spindle power for rapid, parallel workpiece carving.
- check_circle Standard 4x8 ft Work Envelope: 1300 x 2500 mm working bed handles full commercial sheets without pre-cutting.
- check_circle Rapid 30,000 mm/min Velocity: High-torque drives and helical gearing enable fast traversing and cycle times.
- check_circle Heavy Steel Tubular Frame: Fully stress-relieved welded body dampens vibration and prevents gantry deflection.
- check_circle Dual Motor Y-Axis Drive: Synchronized rack drives on both sides prevent gantry skewing during heavy milling.
- check_circle Standard G-Code Execution: Seamlessly imports toolpaths from ArtCAM, Aspire, Vectric, UcanCAM, and Type3.
- check_circle Z-Axis Safety Brake: Prevents gravity spindle drop during unexpected power cuts, protecting tooling and workpiece.
Industrial Applications
Target Production & Material Use CasesCarving acoustic panels, feature walls, and decorative MDF relief boards at commercial speeds.
Mass production of shaker doors, membrane foil profiles, and carved wooden wardrobe panels.
Flawless grooving, hinge mortising, and perimeter profiling on solid timber and composite doors.
High-precision cutting of architectural cladding, 3D channel letters, and LED acrylic panels.
Engraving soft non-ferrous metals, nameplates, electrical panels, and molding templates.
Key Operational Advantages
Engineering ROI & ReliabilityProduces two identical carved parts in the exact same cycle time as a conventional single-head router.
Vibration-free gantry motion ensures clean cutter paths requiring minimal post-sanding or polishing.
Industrial gear racks and auto-lubrication lines keep guide bearings running smoothly across 24/7 shifts.
Reduces labor overhead and machine amortization per square foot of manufactured furniture.
1325V Double Spindle CNC Router — Industrial Summary
High-Efficiency Synchronous Dual-Spindle CNC Machining Center
The 1325V Double Spindle CNC Router (Model DM1325) is engineered specifically for commercial woodworking, architectural wave board carving, and large-format panel processing workshops where cycle times dictate profit margins. By mounting two high-torque electrospindles on a single heavy-gauge steel gantry, this machine allows operators to machine two identical panels simultaneously, doubling shop-floor throughput without consuming extra factory footprint.
Constructed upon a stress-relieved, thick-walled steel tubular chassis, the DM1325 maintains extreme dynamic rigidity even under heavy lateral milling cuts in solid timber, acrylic, and brass. The combination of precision helical rack-and-pinion transmission on the X and Y axes with dual stepper/hybrid servo motors provides smooth motion and zero chatter at cutting feeds up to 30,000 mm/min.
Key Mechanical & Production Capabilities:
- Dual Independent/Synchronous Spindles: Configure for simultaneous dual-part duplicate machining or rapid alternating tool operations.
- Reinforced T-Slot Clamping Bed: Heavy extruded aluminum cross-ribbed bed with high-density PVC inserts for mechanical clamp anchoring.
- High-Speed Motion Architecture: Hardened 25 mm linear guide rails with recirculating ball runner blocks deliver ±0.03 mm repositioning accuracy.
- Versatile Substrate Handling: Easily mills MDF, teak, sheesham, acrylic sheets, aluminum composite panels (ACP), PVC foam boards, and soft stone.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| Model | DM1325 |
| Machine Type | 3 Axis Double Spindle CNC Router |
| Number Of Spindles | Double (2 Spindles) |
| Axis Count | 3 Axis (X, Y, Z) |
| Working Area | 1300×2500 mm |
| Working Area (feet x feet) | 4 x 8 Feet |
| Table Type | Heavy-Duty T Slot Table |
| Spindle Power | 6 kW (Double High-Torque Spindle) |
| Maximum Cutting Speed | 30000 mm/min |
| Spindle Speed Range | 6,000 - 24,000 RPM |
| Transmission System | Precision Helical Rack & Pinion (X, Y), Ball Screw (Z) |
| Job Material | Stone, Wood, Acrylic, MDF, Brass, Aluminum, ACP |
| Application | MDF, Signage, Acrylic, Wood 3D Carving, Furniture |
| Minimum Order Quantity | 1 Piece |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 1 verified client review.
“High precision repeatability and robust chassis. Operating seamlessly across multiple shifts.”
Complementary Industrial CNC Systems

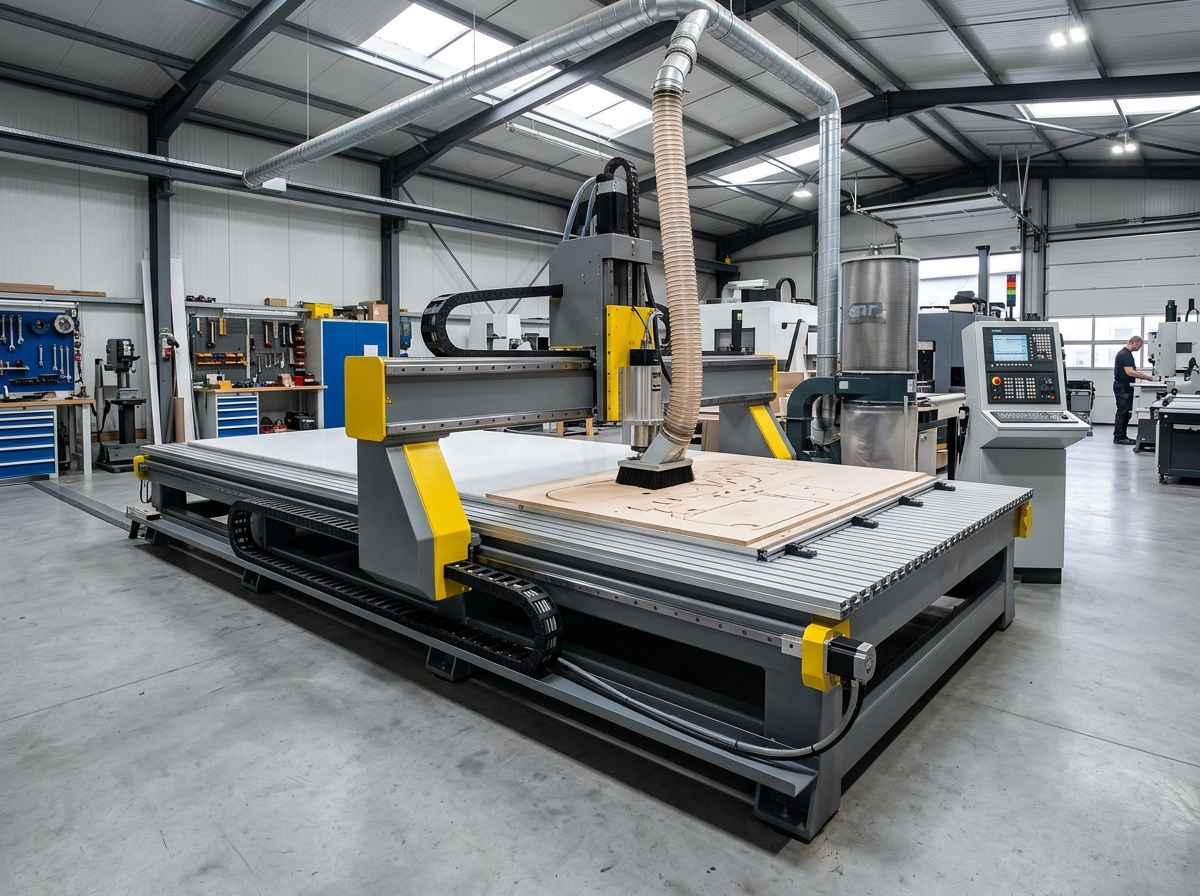

1500 X 3000 Mm CNC Cutting Machine
Made-in-India large-format 5x10 ft (1500x3000 mm) industrial CNC router machine. Built with reinforced steel gantry, high-torque routing spindle, and precision helical rack drives for full-sheet plywood, ACP, acrylic, and solid wood fabrication.
Cnc Router With Rotary Machine
Heavy-duty 1300x2500 mm (4x8 ft) industrial CNC router equipped with a dedicated 4th-axis rotary indexer chuck. Powered by a 6 kW high-torque spindle, dual-motor Y-axis helical rack drive, and 0.01 mm repositioning accuracy for both flat sheet routing and 360° cylindrical baluster carving.

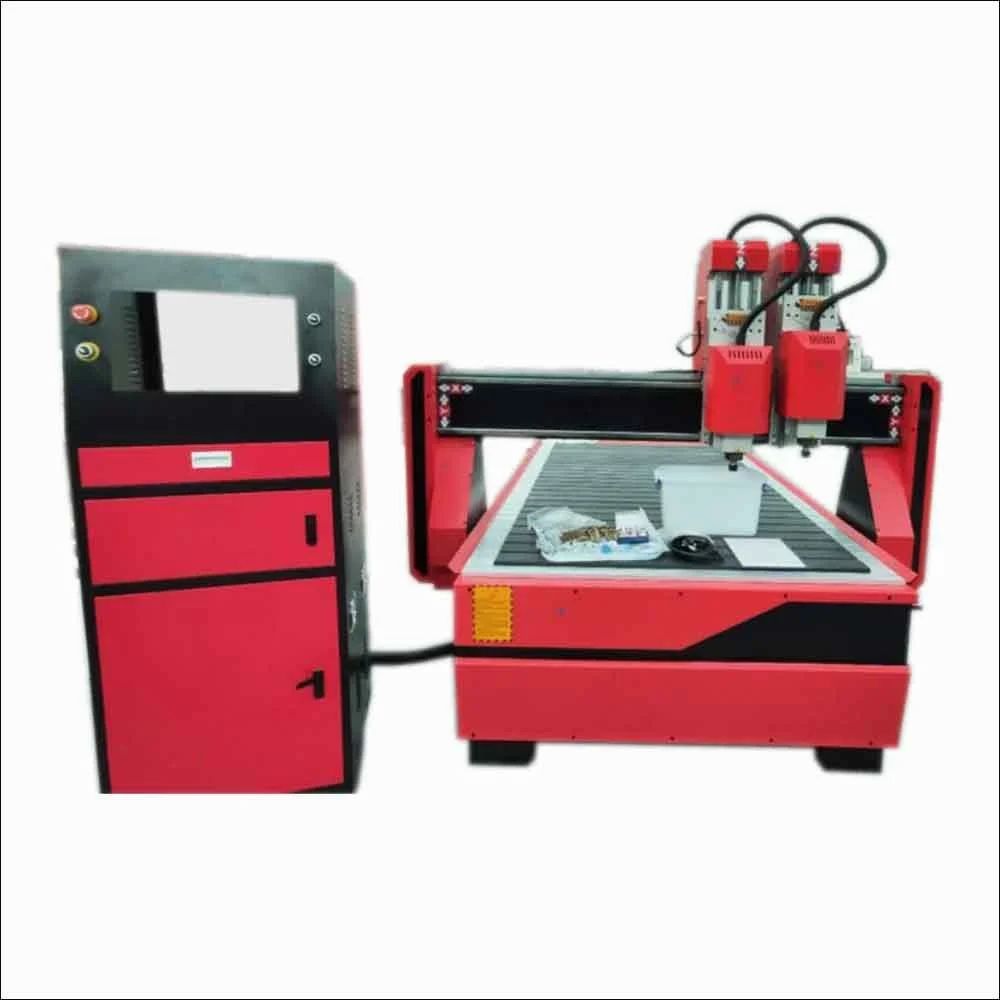

CNC Engraving Machine
