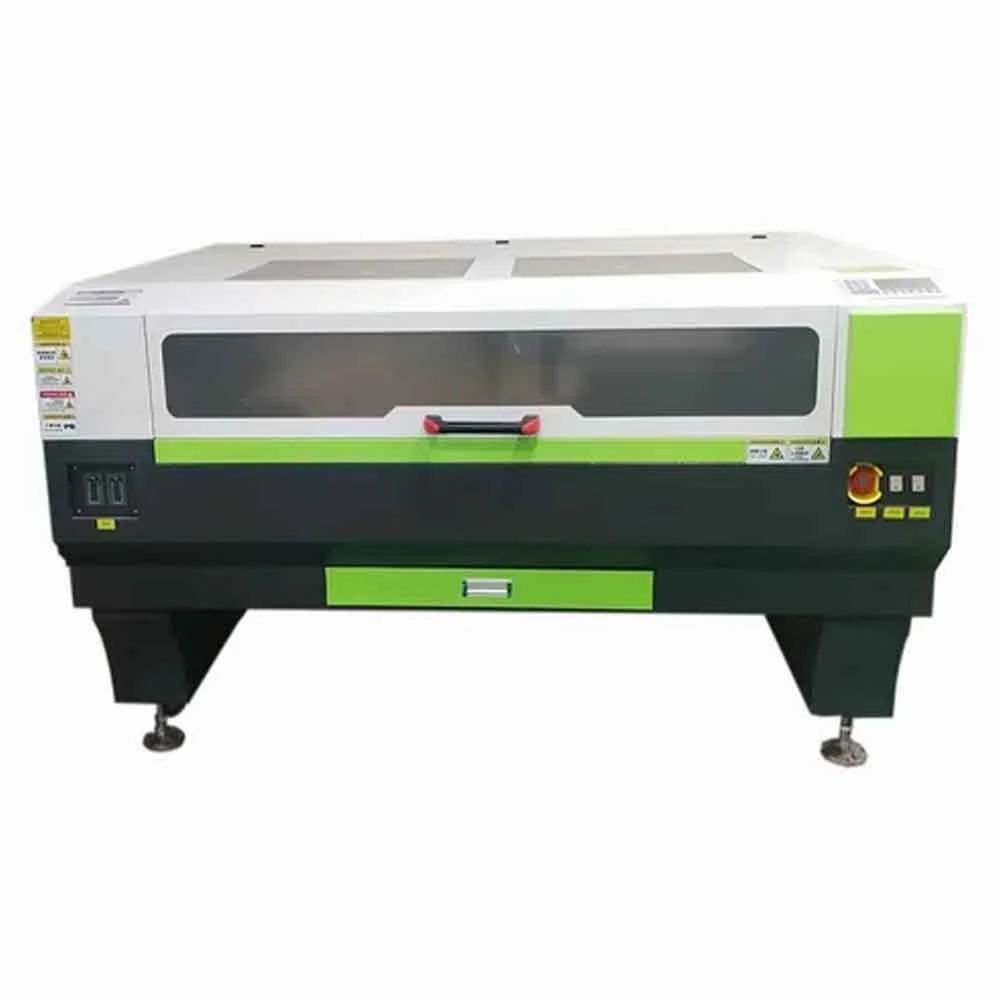

CO2 LASER Cutting & Engraving Machine
High-precision CO2 laser cutting and engraving machine (60W–180W) engineered for clean cutting and fine engraving on acrylic, wood, leather, and glass. Built with durable Leadshine motion, CW water cooling, and versatile bed options up to 1400×1000 mm for signage, crafts, and prototyping.
- check_circle Precision Laser: CO2 sealed tube (60W–180W) for accurate cutting/engraving.
- check_circle Work Area Options: 900×600 mm, 1300×900 mm, or 1400×1000 mm.
- check_circle High Speed: Up to 6000 cm/min engraving, 5000 cm/min cutting.
- check_circle Durable Components: Leadshine motor, Yuming motion, brass pulleys.
- check_circle Cooling & Safety: CW-5000/CW-5200 chiller, air compressor & Exhaust Blower for fume control.
- check_circle Software Support: CorelDraw, Photoshop, AutoCAD; formats: BMP, PLT, DST, DXF, AI.
- check_circle Bed Types: Honeycomb or Aluminium Strip bed.
Industrial Applications
Target Production & Material Use CasesCustom acrylic, wood, glass signs.
Patterns on fabric, leather for apparel.
Personalized wood, acrylic, crystal gifts.
Models from acrylic, wood.
Engraving on marble, ceramic, glass.
Key Operational Advantages
Engineering ROI & ReliabilityFast speeds boost productivity.
Processes acrylic, glass, wood and more.
Low-maintenance, durable design.
Clean cuts, detailed engravings.
Easy software and optional rotary axis.
Sample Designs & Finished Workpieces
Precision finished specimens produced by our CO2 LASER Cutting & Engraving Machine. Inspect surface edge quality and cut depth.
CO2 LASER Cutting & Engraving Machine — Industrial Summary
Precision CO2 Laser Cutting & Engraving Solution
The CO₂ Laser Cutting & Engraving Machine is a powerful, precision tool for clean cutting and detailed engraving on materials like wood, acrylic, leather, and glass. Compact yet versatile, it delivers accurate results with adjustable power settings and CAD/CAM compatibility, making it ideal for signage, prototyping, and creative projects.
Industrial Build & Motion Architecture
Engineered for steady day-in, day-out shop floor production, the system utilizes high-torque Leadshine stepper motors and drives matched with inner slide guide rails and all-brass pulleys. This durable drive system delivers smooth, vibration-free tracking across speeds up to 6,000 cm/min for engraving and 5,000 cm/min for cutting. Operators can choose between Honeycomb or Aluminium Strip beds across three practical working areas: 900×600 mm, 1300×900 mm, or 1400×1000 mm.
Laser Power, Optical Cooling & Fume Control
The machine houses a water-cooled CO₂ sealed glass laser tube (EFR standard, with optional Yongli or Reci configurations) available in 60W, 80W, 100W, 130W, 150W, and 180W power stages. Thermal management is handled reliably by an external CW-5000 or CW-5200 industrial chiller. An integrated 135W/160W air compressor delivers constant assist air directly to the focus nozzle, protecting the lens from smoke while suppressing flaming on wood and acrylic. A dedicated 550W/750W exhaust blower keeps the working chamber clear of fumes and dust.
Software Support & Production Versatility
Designed to fit directly into your current graphics or CAD pipeline, the controller supports CorelDraw, PhotoShop, AutoCAD, and TAJIMA, reading standard vector and raster files including BMP, PLT, DST, DXF, and AI. For specialized production requirements, optional motorized up-down worktables and cylindrical rotary axis attachments are available.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| PRODUCT OVERVIEW | |
| Model | LASER Cutting & Engraving Machine |
| Working Area | 900x600 / 1300x900 / 1400x1000 |
| Bed Type | Honeycomb / Aluminium Strip Bed |
| Laser Power | 60W, 80W, 100W, 130W, 150W, 180W |
| LASER Tube | EFR (Optional Yongli / Reci) |
| LASER Type | CO2 sealed laser tube, water-cooled (Glass Tube) |
| Engraving Speed | 0–6000 cm/min |
| Cutting Speed | 0–5000 cm/min |
| Motors & Drives | Leadshine |
| Driving System | Stepper Motor |
| Motion System | Inner Slide Guide Rails |
| Pulley Material | All Brass |
| Chiller | CW-5000 / CW-5200 |
| Blower | 550W / 750W |
| Air Compressor | 135W / 160W |
| Graphic Format Supported | BMP, PLT, DST, DXF, AI |
| Software Supported | CorelDraw, PhotoShop, AutoCAD, TAJIMA |
| Power Supply | 220V/50HZ, 110V/60HZ |
| Optional Parts | Up-down Worktable, Rotary Axis |
| Applicable Material | Acrylic, Crystal, Glass, Ceramic, Marble, Metal Coating, Cloth, Fabric, Wood etc. |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 2 verified client reviews.
“Heavy gantry design and stainless steel water bed provide rock-solid dampening for marble and granite 3D relief carving. Excellent build quality and responsive after-sales support.”
“High precision repeatability and robust chassis. Operating seamlessly across multiple shifts.”
Complementary Industrial CNC Systems

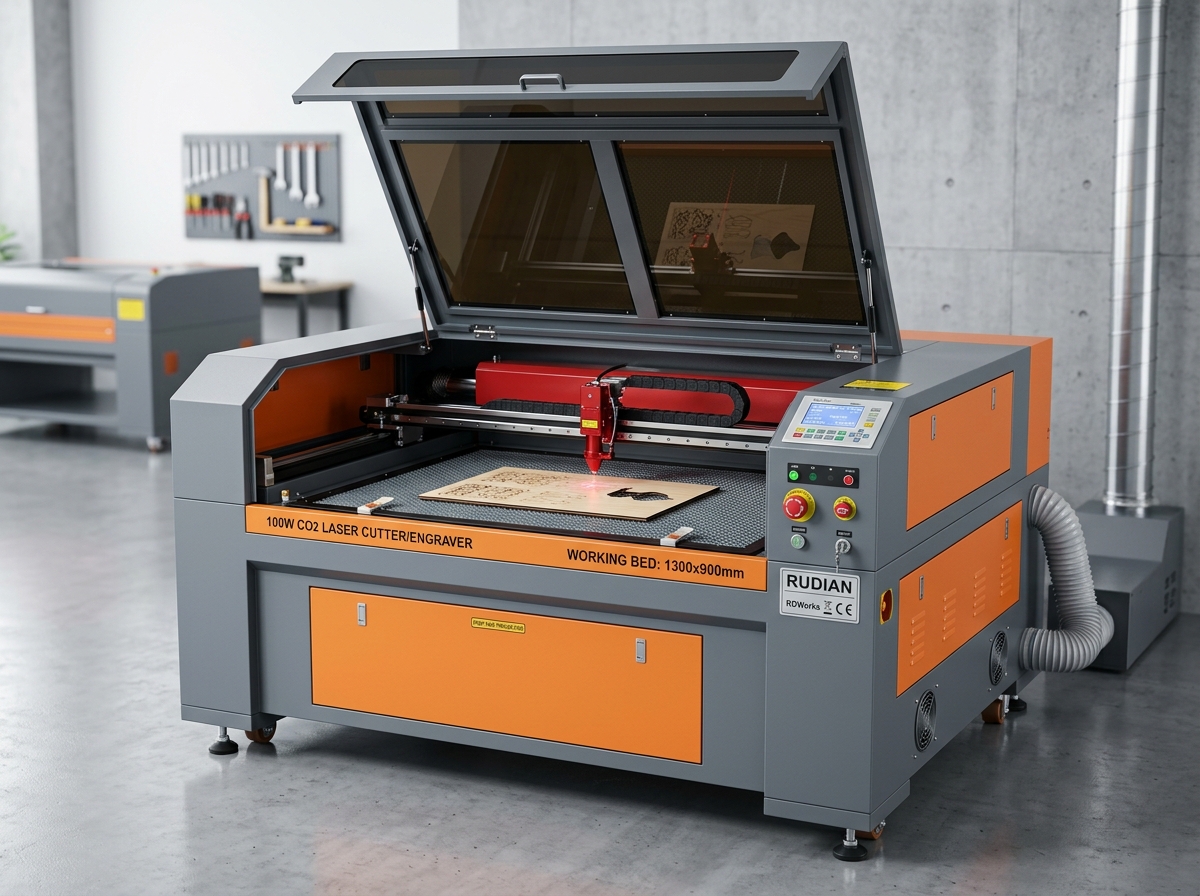

CO2 Laser Machine
