Double Head Laser Cutting Machine
High-throughput 1300x900 mm dual-head CO2 laser cutting workstation featuring twin synchronized cutting nozzles and two 100W CO2 laser tubes. Doubles production output across acrylic, garment fabrics, footwear leather, paper, and MDF panels by cutting two identical parts simultaneously with adjustable head spacing.
- check_circle 2x Manufacturing Output: Twin synchronized laser cutting heads cut two identical pieces simultaneously in a single pass.
- check_circle 1300 x 900 mm Dual-Zone Bed: Generous working area accommodates full commercial sheet sizes and parallel nested job layouts.
- check_circle Dual 100W EFR CO2 Laser Tubes: Independent laser tubes and power supplies guarantee uncompromised optical cutting power at both heads.
- check_circle Manually Adjustable Head Spacing: Easily configure nozzle-to-nozzle spacing to match nesting dimensions of different workpieces.
- check_circle Precision Linear Motion System: Precision-ground linear guide rails and synchronous belts deliver 0.01 mm repeatability.
- check_circle Dedicated Air Assist on Both Heads: Independent pneumatic lines prevent scorching on wood, leather, and acrylic kerfs.
- check_circle Ruida Dual-Laser DSP Controller: Advanced multi-axis motion controller manages synchronized laser triggering without timing jitter.
Industrial Applications
Target Production & Material Use CasesHigh-velocity simultaneous cutting of textile patches, lace patterns, sportswear motifs, and synthetic fabric panels.
Slicing paired left and right shoe upper patterns or duplicate insoles from leather hides with 100% geometric symmetry.
Mass producing acrylic merchandise stands, brochure holders, channel letters, and cosmetic counter displays in half the time.
High-volume vector slicing of decorative MDF toys, wooden puzzles, and holiday ornaments with mirror-smooth edges.
Synchronous precision punching of industrial silicone gaskets, foam seals, and non-woven filtration media.
Key Operational Advantages
Engineering ROI & ReliabilityOutputs two completed parts per cycle, effectively halving manufacturing lead times and doubling daily billable volume.
One machine operator manages twice the cutting production, significantly reducing labor overhead per manufactured piece.
Synchronized dual heads ensure left and right components share identical cutting speeds, power densities, and edge appearances.
Achieves the throughput of two separate machines while saving valuable production floor space and power outlet infrastructure.
Double Head Laser Cutting Machine — Industrial Summary
High-Productivity Twin-Gantry Dual-Head CO2 Laser Cutting Machine (1300x900 mm)
The Daksh DM-1390X Double Head Laser Cutting Machine is an industrial flatbed fabrication station engineered to dramatically multiply production capacity for high-volume serial manufacturing operations. Featuring twin synchronized laser cutting assemblies traveling across a rigid transverse gantry over a 1300 x 900 mm processing envelope, this machine processes two identical components in parallel during every motion cycle. This dual-beam architecture effectively doubles manufacturing throughput while utilizing the identical factory footprint and single-operator supervision of a standard laser system.
Each cutting head is powered by its own dedicated 100-Watt catalyst-enhanced CO2 glass laser tube and matched high-voltage digital power supply. This isolated dual-tube design guarantees that both laser beams maintain identical focal spot diameters, beam circularity, and cut depths without splitting optical power through lossy internal beam combiners. Spacing between the two cutting nozzles can be adjusted rapidly along the precision gantry rail to match varying job nest sizes, or locked for simultaneous mass production runs.
Precision Dual-Optical & High-Volume Fabrication Highlights:
- Adjustable Twin-Head Spacing: Independent sliding carriages allow the operator to adjust the distance between head #1 and head #2 from 100 mm to 600 mm, accommodating different nesting widths on single sheets.
- Isolated Dual 100W Laser Tubes: Two independent 100W sealed CO2 glass tubes eliminate power degradation, delivering symmetrical cut kerfs on both left and right work zones.
- Dual Independent Coaxial Air Assist: Separate pneumatic air regulators deliver high-pressure airflow directly to both cutting heads, suppressing flaming and keeping optics spotless.
- Reinforced Heavy-Gauge Gantry: High-rigidity steel gantry bridge counteracts dynamic acceleration deflection from the combined weight of two moving optical carriages.
- Multi-Channel Exhaust Blower Ducting: Dual suction collection ports evacuate vaporized acrylic vapors, fabric lint, and smoke evenly across the entire bed width.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| Model Name / Number | DM-1390X (Double Head) |
| Machine Type | Dual-Head Synchronous Flatbed CO2 Laser Cutter |
| Cutting Head Configuration | Twin Synchronized Laser Heads with Adjustable Spacing |
| Brand & Manufacturer | Daksh CAD CAM Private Limited |
| Country of Origin | Made in India |
| Total Working Envelope | 1300 x 900 mm (51.2 x 35.4 in) |
| Head-to-Head Spacing Range | 100 mm to 650 mm (Manually Adjustable) |
| Work Table Bed Type | Convertible Blade Slats & Honeycomb Mesh Bed |
| Compatible Materials | Acrylic, Leather, Paper, Fabric, MDF, Wood, Rubber |
| Laser Tube Configuration | 2 x 100W Sealed CO2 Glass Laser Tubes (Dual Tubes) |
| Individual Laser Power | 100 W per Head (200 W Total Installed Power) |
| Laser Power Supplies | Dual Independent High-Voltage Digital Power Supplies |
| Cooling Method | Industrial Water Chiller with Dual-Loop Circulation |
| Maximum Cutting Speed | Up to 600 mm/s (Simultaneous Dual-Head Output) |
| Repositioning Accuracy | ±0.01 mm |
| Motion Guide System | Heavy Precision Linear Guide Rails & Polyurethane Timing Belts |
| Control System & Software | Ruida Dual-Head DSP Digital Controller (RDWorks Compatible) |
| Operating Voltage & Frequency | AC 220V ±10%, 50/60 Hz, Single Phase |
| Air & Exhaust Equipment | Dual Coaxial Air Nozzles & High-Volume Exhaust Blower |
| Minimum Order Quantity | 1 Piece |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 0 verified client reviews.
No Reviews Yet
Be the first industrial buyer to review this machine or spare part. Your operational feedback assists manufacturing engineers nationwide.
Complementary Industrial CNC Systems

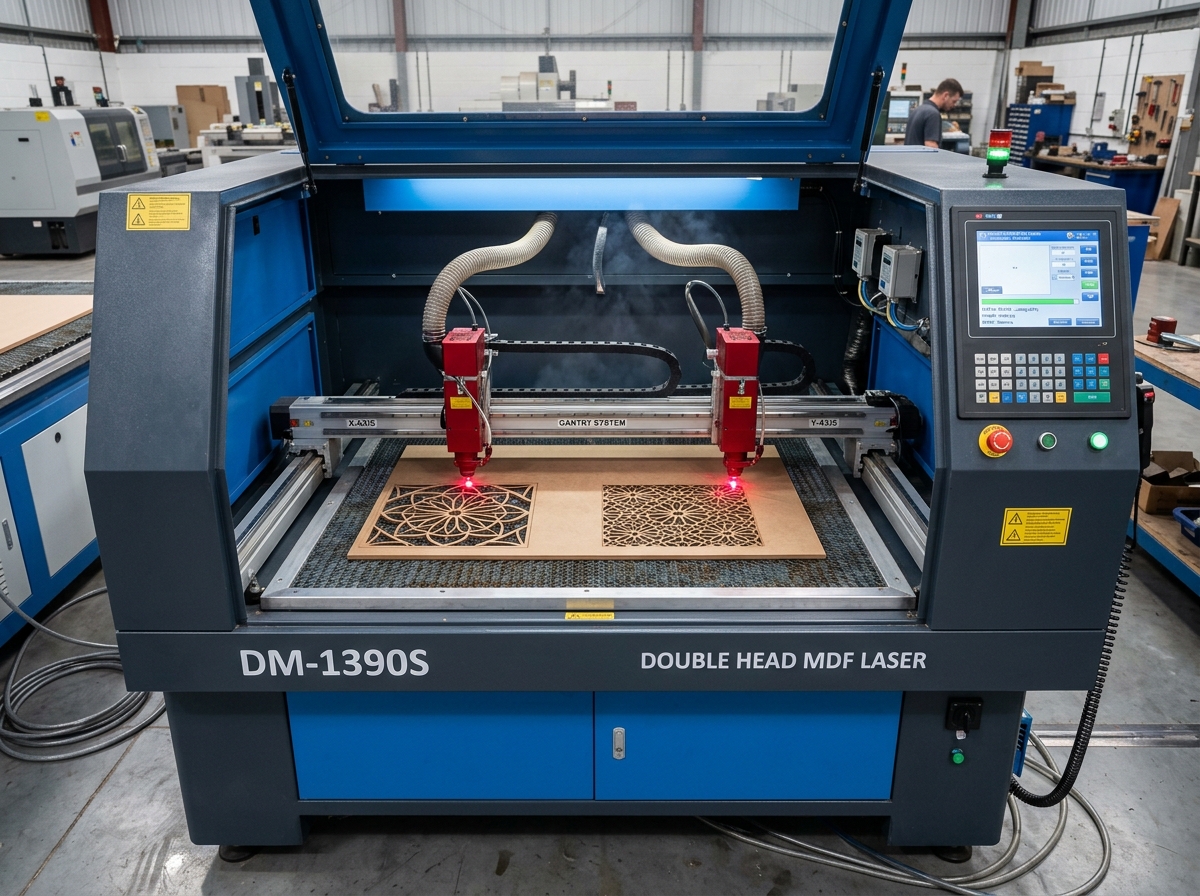

Double Head MDF Laser Cutting Machine
