Acrylic Cutting Machine
Full-sheet 1300x2500 mm (4x8 ft) industrial CO2 acrylic laser cutting machine equipped with a 130W EFR laser tube, DY-20 high-voltage power supply, aluminum strip table, and CW5200 industrial chiller. Delivers 1000 DPI resolution, 3600 mm/min cutting speed, and crystal-clear flame-polished vector cuts on up to 20 mm cast acrylic sheets.
- check_circle Massive 1300 x 2500 mm (4x8 ft) Working Bed: Load entire standard acrylic and wood panels directly with zero preparatory shearing.
- check_circle 130W EFR Sealed CO2 Laser Tube: Powerful continuous output slices through up to 20 mm cast acrylic with flame-like edge gloss.
- check_circle DY-20 Digital Laser Power Supply: Matched high-voltage power stage provides stable current regulation and fast pulse response.
- check_circle Aluminum Knife-Strip Table: Minimizes bottom reflection burns, heat marking, and molten resin pooling on clear acrylic panels.
- check_circle CW5200 Industrial Compressor Chiller Included: Active refrigeration maintains optimal laser gas temperature during 24/7 continuous duty.
- check_circle Dual 550W Exhaust Evacuation Blowers: High-suction twin blower system rapidly clears hazardous acrylic vapor from the workshop.
- check_circle High-Resolution 1000 DPI System: Delivers razor-sharp vector kerfs, intricate frets, and crisp micro-lettering without serrated steps.
Industrial Applications
Target Production & Material Use CasesCutting full 4x8 ft decorative acrylic privacy screens, balustrades, acoustic panels, and artistic interior wall fixtures.
Producing large-format acrylic lettering, backlit logo faces, light diffuser plates, and retail edge-lit signs.
Fabricating thick 10 mm to 20 mm crystal-clear acrylic showcases and boutique retail point-of-sale display towers.
Deep contour slicing of thick MDF speaker enclosures, wooden temple backdrops, fretwork screens, and craft furniture.
Slicing durable transparent machine enclosures, operator safety guards, and chemical-resistant viewing panels.
Key Operational Advantages
Engineering ROI & ReliabilityHigh-power TEM00 laser cut leaves acrylic edges crystal clear and mirror-smooth directly from the bed, saving hours of manual labor.
Loading uncut 4x8 ft sheets allows optimal algorithmic nesting, cutting raw material waste by up to 25%.
Heavy-gauge steel frame and CW5200 active chiller enable nonstop round-the-clock commercial manufacturing shifts.
Unlike mechanical CNC milling, laser cutting exerts zero tool pressure and never breaks bits or chips fragile acrylic.
Acrylic Cutting Machine — Industrial Summary
Full-Format Industrial Acrylic CO2 Laser Cutting Machine (1300x2500 mm / 130W)
The Daksh DM-1325 Acrylic Cutting Machine is an industrial heavy-duty flatbed CO2 laser workstation engineered to process full 4x8 ft (1300 x 2500 mm) commercial sheets of cast and extruded acrylic, polycarbonate, MDF, and dense organic plastics. Built with an open-bed architecture that enables continuous direct loading of entire manufacturer stock sheets without pre-cutting, this machine utilizes a high-potency 130-Watt EFR sealed CO2 glass discharge resonator powered by a matched DY-20 digital high-voltage power supply. This optical configuration produces deep photon penetration, effortlessly cutting through acrylic sheets up to 20 mm thick while leaving edge perimeters completely transparent and flame-polished.
To eliminate rear reflection flashback and molten heat accumulation on bottom sheet surfaces, the DM-1325 features an anodized aluminum knife-strip work table. Each strip presents a knife-thin contact profile that allows vaporized acrylic gas and molten resins to vent downward into the chassis vacuum ducting. Driven by high-torque microstepping motors, hardened precision linear guide rails, and heavy-duty steel-reinforced belts, the machine achieves cutting velocities up to 3600 mm/min with 1000 DPI engraving fidelity.
Advanced Laser Mechanics, Optics & Industrial Thermal Management:
- Full 4x8 Ft Processing Envelope: Expansive 1300 x 2500 mm bed accommodates standard industrial acrylic panels, architectural panels, and large-format nested signage batches.
- 130W EFR Resonator with DY-20 Power Supply: Delivers pristine TEM00 Gaussian beam circularity, sustained cutting wattage, and high instantaneous strike voltages for fast vector piercing.
- CW5200 Refrigeration Water Chiller: Closed-loop compressor refrigeration chiller maintains laser tube coolant precisely within 18°C to 22°C to prevent thermal wavelength drift and preserve tube longevity.
- Dual 550W Centrifugal Exhaust Array: Two high-capacity 550-Watt exhaust blowers pull heavy acrid acrylic fumes and vaporized monomer dust downward across the bed, keeping factory air clean.
- 180W Coaxial Compressor Air Assist: High-pressure pneumatic jet blows along the optical axis, cooling the focal zone, blowing away flaming gas flare-ups, and keeping the 20 mm lens spotless.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| Model Name / Number | DM-1325 (Acrylic Cutting Series) |
| Machine Type | Heavy Industrial Flatbed CO2 Laser Cutter |
| Automation Grade | Semi-Automatic Industrial Production |
| Brand & Manufacturer | Daksh CAD CAM Private Limited |
| Country of Origin | Made in India |
| Working Table Size (X x Y) | 1300 x 2500 mm (4 x 8 Feet Full Format) |
| Work Table Surface Design | Anodized Aluminum Knife-Strip Table with Low Reflection |
| Maximum Cutting Thickness | Up to 20 mm (Cast Acrylic), 15 mm (MDF/Wood) |
| Machine Footprint Dimensions | 1910 x 3650 x 1000 mm (Gross Weight: 1000 kg) |
| Laser Tube Brand & Model | 130W EFR Sealed CO2 Glass Discharge Laser Tube |
| Laser Power Supply Model | DY-20 High-Voltage Digital Laser Power Supply |
| Optical Resolution | 1000 DPI Continuous Resolution |
| Cooling Equipment Included | CW5200 Industrial Compressor Water Chiller Unit |
| Maximum Cutting / Travel Speed | 0 – 3600 mm/min (High-Throughput Vectoring) |
| Drive Motors & Transmission | Precision Microstepping Stepper Motors & Linear Rail System |
| Repositioning Accuracy | ±0.01 mm |
| Air Assist Compressor | Dedicated 180W Electromagnetic Air Compressor |
| Exhaust Fume Evacuation | 2 Sets of 550W Heavy Centrifugal Exhaust Blowers |
| Power Supply & Frequency | AC 220V ±10%, 50 Hz, Single Phase |
| Minimum Order Quantity | 1 Piece |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 0 verified client reviews.
No Reviews Yet
Be the first industrial buyer to review this machine or spare part. Your operational feedback assists manufacturing engineers nationwide.
Complementary Industrial CNC Systems

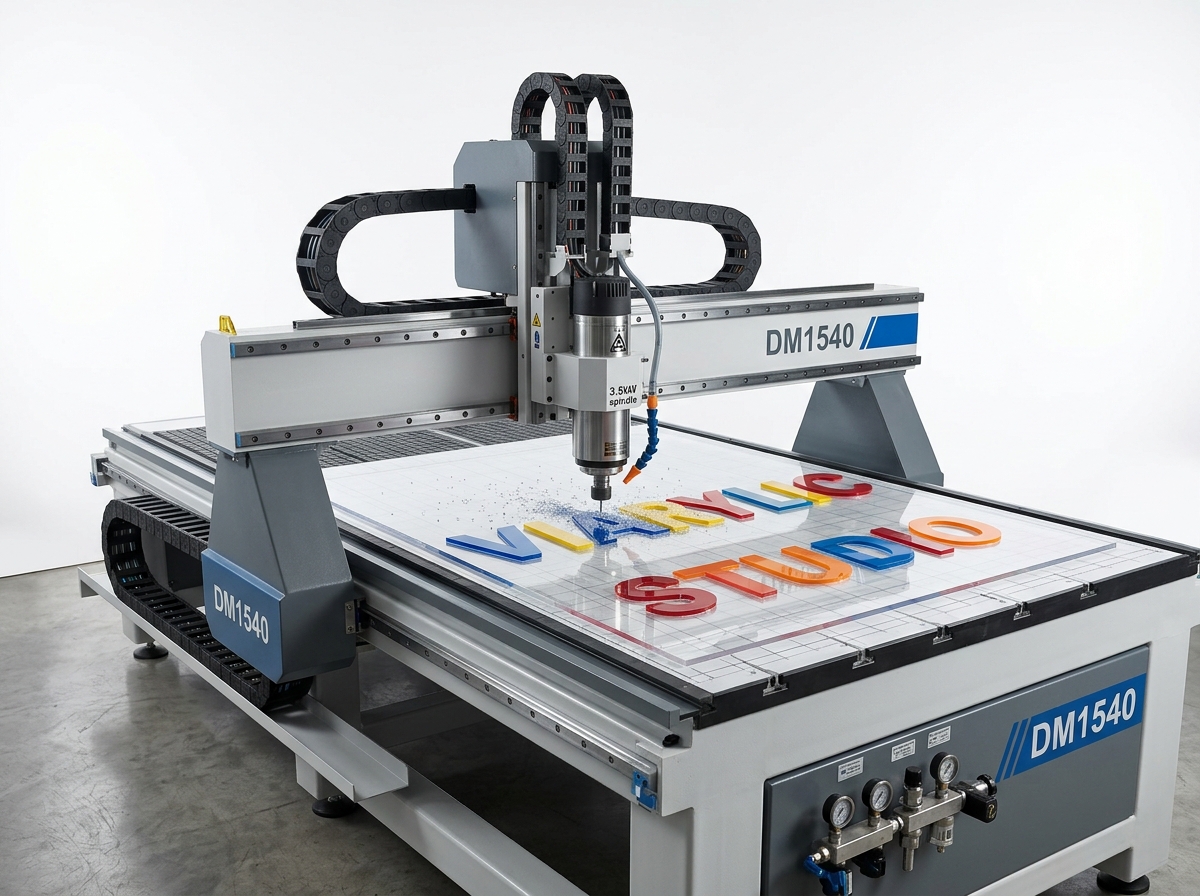

Acrylic Cnc Router Machine
High-velocity 3-axis industrial CNC router optimized for vibration-free optical acrylic routing, signboards, plastics, and non-ferrous sheet cutting. Powered by a 3.5 kW high-frequency spindle delivering glassy polished edge finishes at cutting feeds up to 30,000 mm/min.

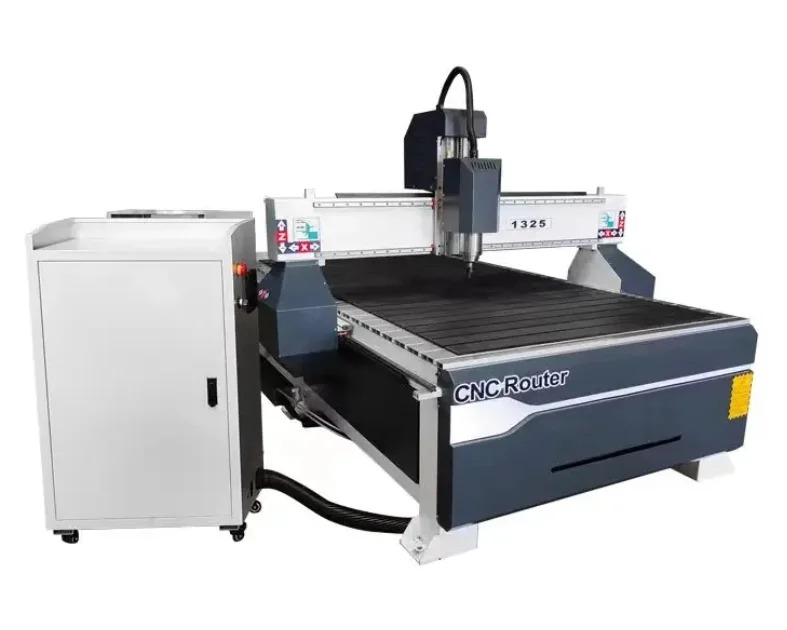

CNC Router 1325 Wood Working Machine
Experience precision and power with the CNC Router 1325 Woodworking Machine. Featuring a heavy-duty steel frame and a high-speed 6KW air-cooled spindle, it delivers flawless carving, cutting, and milling for furniture, MDF, acrylic, and more.

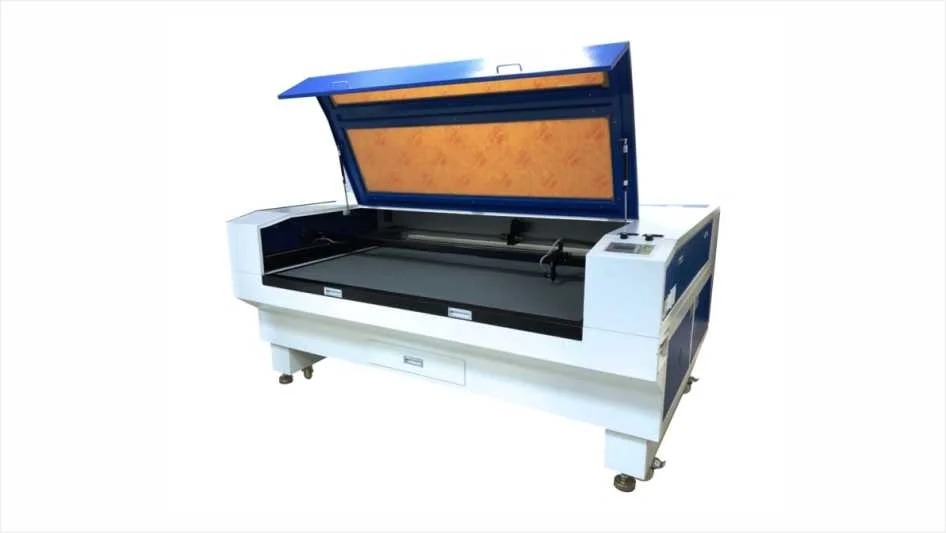

CO2 LASER Cutting & Engraving Machine
