1325 Series Stone CNC Router
Heavy-duty 1300x2500 mm (4x8 ft) industrial 3-axis CNC router built for marble, granite, ceramic tile, sandstone, and hardwood. Features a 6.0 kW water-cooled high-torque electrospindle, stainless steel recirculating water sink bed, 1500 kg rigid cast steel gantry chassis, and 12.7 mm shank tooling capacity for deep 3D carving, profiling, and drilling.
- check_circle Heavy-Duty 1500 kg Chassis: Heavy steel gantry absorbs aggressive cutting vibrations during deep granite and marble milling.
- check_circle 6.0 kW High-Torque Spindle: Delivers immense low-end torque for hogging out dense granite, artificial quartz, and marble.
- check_circle 1300 x 2500 mm (4x8 ft) Working Bed: Standard industrial format fits full-size stone slabs, tombstone blocks, and architectural panels.
- check_circle 304 Stainless Steel Water Sink Bed: Complete wet-cutting enclosure with recirculating flood coolant protects diamond tooling.
- check_circle Helical Rack & Pinion Transmission: High contact-ratio helical gearing provides smooth, high-speed feed motion without chatter.
- check_circle 12.7 mm Shank Tooling Capacity: Standard ER32 collet accommodates heavy 1/2-inch diamond core drills, profiling, and v-bits.
- check_circle G-Code Industry Standard Controller: Fully compatible with ArtCAM, Aspire, Type3, and JDUncut for 3D reliefs and lettering.
Industrial Applications
Target Production & Material Use CasesDeep V-groove lettering, portrait bas-reliefs, and decorative border carvings in polished black granite, marble, and sandstone.
Carving ornate classical moldings, fireplace mantels, fluted stone pillars, balustrades, and historic restoration reliefs.
Milling sink cutouts, faucet holes, drainboard fluting, and ogee edge profiling in quartz, granite, and composite stone.
Carving large decorative ceramic mural tiles, textured feature walls, as well as 3D wood carvings, solid teak doors, and acrylic signage.
Heavy vector engraving and dimensional logo profiling on corporate milestone boulders, slate tablets, and memorial plaques.
Key Operational Advantages
Engineering ROI & ReliabilityHigh-velocity water jets directly cool diamond cutting matrixes, quadrupling tool longevity and preventing thermal cracking in stone.
Heavy structural bed eliminates vibration harmonics, leaving cut stone surfaces ultra-smooth with sharp, chip-free edge crispness.
Single workstation transitions seamlessly from heavy granite milling to fine hardwood carving, acrylic cutting, and brass plate routing.
Preloaded linear guide trucks and ground ball screw ensure multi-pass 3D carving contours align with microscopic precision.
1325 Series Stone CNC Router — Industrial Summary
Industrial Heavy-Duty 1300x2500 mm Stone & Granite CNC Router (6.0 kW Water-Cooled)
The MSUN 1325 Series Stone CNC Router is an industrial-grade 3-axis computer-controlled carving and milling machine specifically engineered to handle the brutal mechanical stresses of stone, granite, marble, and tough hardwood fabrication. Built around a standard 1300 x 2500 mm (4.26 x 8.20 ft) active machining envelope, this powerhouse system is built upon a heavily reinforced, vibration-damped tubular steel frame weighing 1,500 kg. This mass ensures absolute structural rigidity, completely mitigating harmonic resonance and bit chatter during aggressive roughing passes into dense natural stones.
Milling power is driven by an industrial 6.0 kW water-cooled high-torque electrospindle with an ER32 collet capacity accepting heavy-shank diamond profiling bits up to 12.7 mm in diameter. The machine features an integrated 304 stainless steel water sink bed with dual-nozzle recirculating coolant jets that spray continuous pressurized water directly onto the cutter contact zone. This eliminates thermal tool breakdown, prevents micro-fracturing of brittle quartz minerals, and continuously flushes abrasive rock slurry through collection drainage gutters away from the drive mechanics.
Advanced Structural, Motion & Spindle Engineering Highlights:
- Reinforced 1,500 kg Cast-Steel Chassis: Machine bed is stress-relieved through thermal annealing and precision-milled on an industrial gantry planer to guarantee lifetime geometric flatness under heavy multi-ton slab loading.
- 6.0 kW High-Torque Water-Cooled Spindle: Operates smoothly from 6,000 to 24,000 RPM with matched P4-grade high-precision angular contact ceramic/steel bearings engineered for continuous radial and axial thrust loads.
- Stainless Steel Water Bed & Recirculating Slurry Flume: All bed contact surfaces, splash guards, and drain troughs are manufactured from corrosion-proof stainless steel, paired with high-flow submersible coolant pumps.
- Precision Helical Rack & Pinion Drives: X and Y axes utilize precision-ground helical rack and pinion gearing delivering higher contact ratio, quieter operation, and significantly greater torque transmission than standard spur racks.
- Taiwan 25 mm Square Linear Guide Rails: High-rigidity linear rails with 4-way ball bearing trucks maintain 0.01 mm repositioning accuracy even under severe stone dust exposure and wet conditions.
- Dual-Lead Z-Axis Preloaded Ball Screw: Z-axis tool head is driven by a precision TBI ground ball screw with zero backlash, ensuring flawless depth control on intricate 3D V-carvings and lettering.
Technical Specifications & Machine Architecture
| Specification | Parameter / Value |
|---|---|
| Machine Model | MSUN 1325 Series Stone CNC Router |
| Axis Count & Motion | 3-Axis Simultaneous Motion |
| Brand & Manufacturer | MSUN / Daksh CAD CAM |
| Country of Origin | Made in India |
| Machine Total Weight | 1,500 kg (Heavy Welded Steel Frame) |
| XY-Axis Working Area | 1300 x 2500 mm (4.26 x 8.20 ft) |
| Z-Axis Working Height | 300 mm Clearance (Optional 400 mm) |
| Table Surface Architecture | Stainless Steel Water Bed with T-Slot Heavy Fixtures |
| Table Weight Capacity | Up to 2,000 kg Distributed Slab Load |
| Spindle Power Output | 6.0 kW (8.0 HP) High-Torque Constant Power |
| Spindle Speed Range | 6,000 – 24,000 RPM Stepless Inverter Controlled |
| Spindle Cooling Mechanism | Recirculating Water Cooling with Flow Protection |
| Collet Type & Tool Shank | ER32 Collet (Supports 3.175 mm, 6 mm, 12.7 mm Shank Bits) |
| Maximum Cutting Speed | Up to 10,000 mm/min (Depends on Substrate Density) |
| X-Y Axis Transmission | Precision Ground Helical Rack and Pinion Drive |
| Z Axis Transmission | Preloaded TBI Anti-Backlash Precision Ball Screw |
| Linear Guide Rail System | 25 mm Square Linear Guide Rails with Sealed Trucks |
| Repositioning Accuracy | ±0.01 mm |
| Supported Materials | Granite, Marble, Quartz, Bluestone, Ceramic Tile, Sandstone, Hardwood, Acrylic |
| Control Command Language | Standard G-Code, HPGL (U00, mmg, plt, nc) |
| Operating Voltage & Phase | AC 380V ±10%, 50 Hz, 3-Phase (Optional 220V Single-Phase VFD) |
| Coolant Circulation Pump | Heavy-Duty Submersible Slurry Pump with Dual Jet Nozzles |
Customer Reviews & Operational Ratings
Genuine evaluations from manufacturing plants, fabrication units, and machine operators across India.
Based on 0 verified client reviews.
No Reviews Yet
Be the first industrial buyer to review this machine or spare part. Your operational feedback assists manufacturing engineers nationwide.
Complementary Industrial CNC Systems

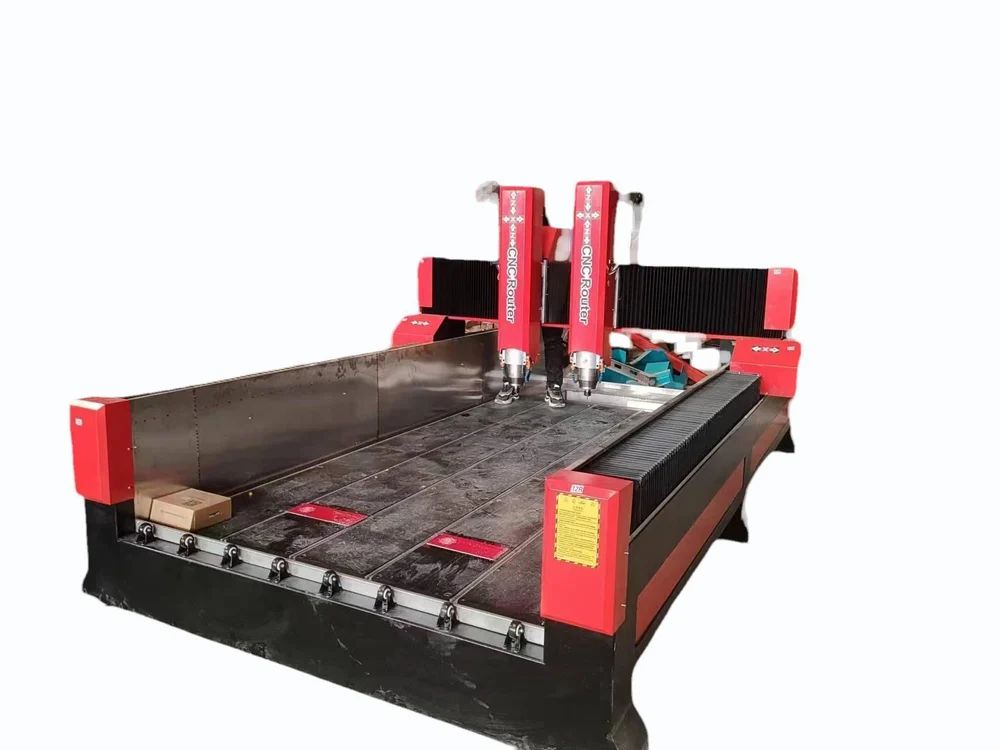

Double Spindle Cnc Stone Engraving Machine
